SURFACE & WELL-SERVICE EQUIPMENT
Well Flushing & Paraffin Removal Truck
ZMI FREE ZONE · SURFACE & WELL-SERVICE EQUIPMENT

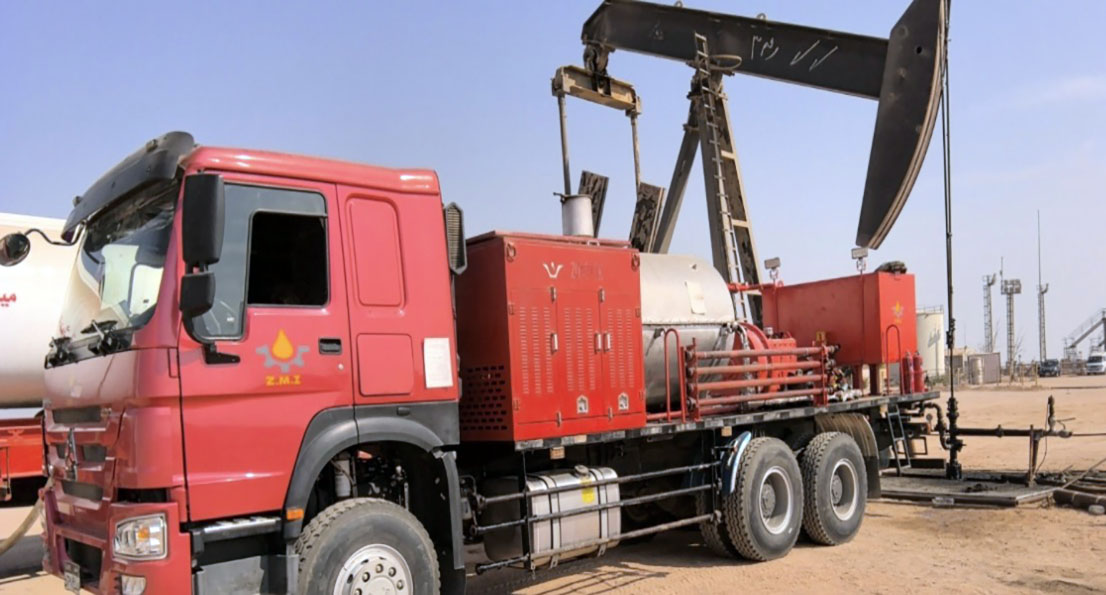

Well Flushing & Paraffin Removal Truck
A truck-mounted, high-pressure, high-temperature service unit built for large displacement and fast heat-up, with flexible assembly and disassembly in the field. Its special boiler generates high-pressure, high-temperature clear water used for heating and cleaning operations — simplifying oil extraction and workover, improving well yield, and easing paraffin-removal operations while cutting labor intensity and operating cost.
UNIT APPLICATIONS
- Freeing stuck SR & PCP from high-viscosity oil / paraffin
- Flowline flushing — scale, slug & paraffin removal
- Pit oil recovery via high-temperature thermal treatment
- Cellar and catchment remediation
- Well injectivity testing under high pressure
- Facility manifold flushing
5,000 PSIOperational pressure
250°CThermal capacity
6 BPMMax displacement
DIESEL GENERATOR
20.0 kVA (16.0 kW)
380V · 30.4A
50Hz · Three-phase
380V · 30.4A
50Hz · Three-phase
SPECIFICATIONS (APPROX.)
| Parameter | Unit | Cold water — max pressure | Cold water — max displacement | Hot (95°C) | Steam (250°C) |
|---|---|---|---|---|---|
| Pressure | PSI | 5,076 | 1,160 | 2,900 | 2,900 |
| MPa | 35 | 8 | 20 | 20 | |
| Displacement | Barrel/hr | 24 | 360 | 45 | 18.5 |
| m³/hr | 4.8 | 60 | 9 | 3.7 |
Steam paraffin-removal device (horizontal ceramic tri-cylinder pump): max working pressure 1,160 PSI (8 MPa), max displacement 252 L/hr, max working temperature 200°C.
Specifications compiled from manufacturer technical data sheets and are subject to change without notice. Contact us for pricing, availability, and application-specific configuration.
