Liner Hanger Systems

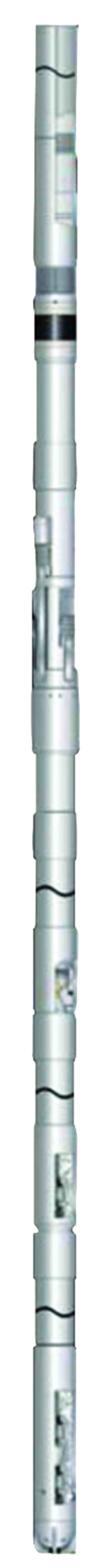

Liner Hanger System
Hydraulic- and mechanical-set liner hangers provide an efficient, cost-effective means of connecting a liner from hole setting depth to the bottom of the existing casing — improving cement jobs, well control, and production, while reducing formation damage, casing length, and completion time.
- Mechanical / hydraulic setting and releasing
- Rotating and non-rotating configurations
- Integrated liner packers
- Cementing heads
- Tie-back packers
- Two-stage cement products and float equipment

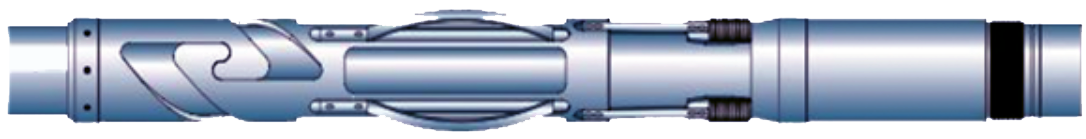

Hydraulic Dovetail Liner Hanger (HDLH)
Integral-body premium hanger. Dovetail slip design gives enhanced bypass and faster running; castellation clutch allows rotation through tight hole spots.

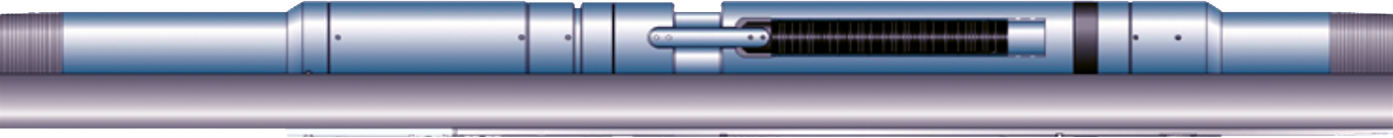

Hydraulic Dovetail Rotating Liner Hanger (HDRLH)
Same integral dovetail platform as the HDLH, rated to rotate into place, set, and continue rotating through the full cementing operation.

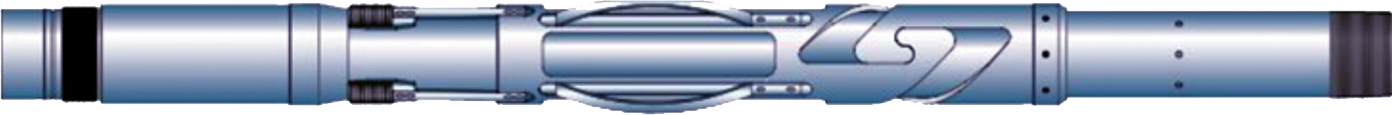

Mechanical Set Liner Hanger (MSLH)
One-piece integral barrel for maximum pressure integrity. Set by picking up and rotating to disengage the J-slot, driving slips against the casing wall. Right-hand set only.
Mechanical Rotating Liner Hanger (MRLH)
Integral-body mechanical hanger with long recessed dovetail slips; the MDRSH variant rotates through the cementing operation once landed.
Specifications compiled from manufacturer technical data sheets and are subject to change without notice. Contact us for pricing, availability, and application-specific configuration.
